When Free Structural Analysis Tools Are Enough — and When You Need Professional Software

Imagine spending hours manually calculating the bending resistance of a beam, only to realize a minor miscalculation could compromise an entire structure. That’s the reality engineers face every day. Free tools, like Moment of Inertia Calculators, offer a fast and accessible way to check calculations, but understanding their limitations is key to designing safe, reliable structures. This article explores when free tools are sufficient and when professional software is indispensable.

Advantages of Free Tools like Moment of Inertia Calculators

Accessibility and Speed

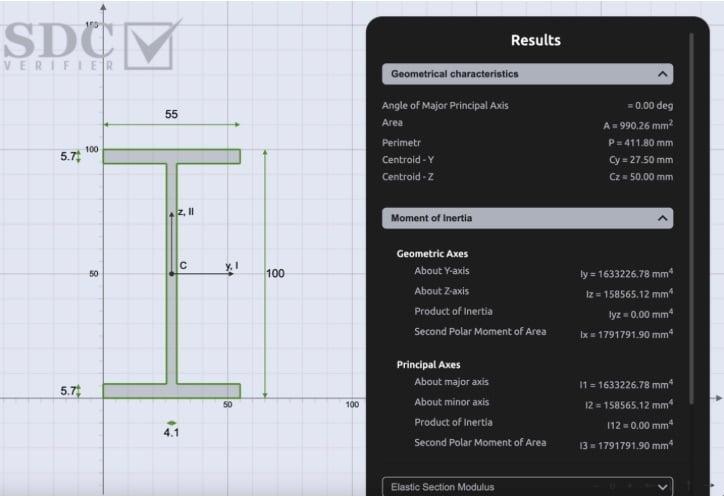

Free calculators, like the SDC Verifier Free Moment of Inertia Calculator, provide instant results for common cross-sections such as rectangles, circles, T-sections, and I-beams. They are particularly useful for engineers in preliminary design stages, when quick checks can save time before committing to full-scale modeling.

User-Friendly Interfaces

Most free calculators are designed to be intuitive. Engineers can input dimensions and instantly obtain centroid, area, and moment of inertia values, reducing errors associated with manual calculations. These tools are ideal for students, freelancers, and small firms exploring preliminary structural solutions.

Cost-Effectiveness

Being free, these calculators remove the financial barrier for small projects or educational purposes. You can perform multiple iterations without investing in costly licenses.

Understanding Moment of Inertia in Practical Engineering

In structural engineering, the moment of inertia (I) is a key property that determines how a cross-section resists bending and deflection under load. It depends not only on the shape and size of the section but also on how material is distributed relative to the neutral axis. For example, I-beams are designed with most of the material far from the neutral axis, maximizing stiffness while minimizing weight.

Beyond simple beams, the moment of inertia is critical in composite sections, hollow structural members, and welded assemblies. Engineers use it to calculate bending stress, deflection, and stability, ensuring components like crane beams, roof trusses, and offshore structures perform safely under operational loads.

Limitations of Free Tools

Handling Complex Geometries

While free tools excel at standard shapes, they struggle with irregular or composite sections. For example, analyzing a box girder with internal stiffeners requires summing multiple areas and applying the parallel axis theorem—a process often simplified or unsupported by free calculators. Mistakes here can lead to underestimating stresses and unsafe designs.

Lack of Code Compliance Checks

Professional engineering requires adherence to standards like Eurocode, AISC, or DNV. Free tools rarely check for these compliance requirements, meaning engineers must manually validate designs against code—introducing additional risk and potential for human error.

Limited Analysis Capabilities

Free calculators typically provide static calculations. They cannot simulate complex load cases, dynamic effects, fatigue, or buckling, all of which are critical for high-stakes engineering projects.

When Professional Software Becomes Necessary

Complex Structural Analysis

Professional software, such as SDC Verifier, allows engineers to model intricate geometries and assess complex load cases, including bending, torsion, shear, and combined stresses. Advanced capabilities like finite element analysis (FEA) and non-linear analysis provide reliable insights for designs that free tools cannot capture.

Compliance with Standards

Professional tools automatically check designs against relevant codes. For example, verifying a welded crane beam per EN 13001 or a pressure vessel per ASME Section VIII is streamlined, reducing manual calculation errors and audit risks.

Documentation and Reporting

Professional software generates detailed, audit-ready documentation, including calculations, stress plots, and verification reports. This is crucial when projects require client approval or regulatory submission.

Workflow Integration

Modern structural software often integrates with CAD and BIM platforms, allowing seamless data transfer, design optimization, and collaboration across teams.

Example: Free Calculator vs Professional Software

Consider analyzing a hollow rectangular section with internal stiffeners under a bending moment:

• Free Moment of Inertia Calculator: Quickly provides I values for the overall section, giving a rough estimation of bending resistance.

• Professional Software: Computes precise stress distribution, deflection under varying load cases, torsional effects, and verifies compliance with Eurocode 3.

This comparison highlights the practical difference: free calculators are sufficient for preliminary checks, but professional software is necessary for final design validation.

Practical Guidelines for Engineers

1. Start with Free Tools: Use the SDC Verifier Moment of Inertia Calculator for initial checks, educational purposes, or simple beam designs.

2. Transition to Professional Software: When working with complex structures, multiple load combinations, or compliance-critical projects.

3. Validate Results: Even when using free tools, cross-check calculations with codes or software when safety is non-negotiable.

4. Integrate Efficiently: Combine free tools with professional software for iterative design, saving time while ensuring accuracy.

Conclusion

Free moment of inertia calculators provide a valuable resource for preliminary analysis and educational purposes. They are fast, accessible, and cost-effective, making them ideal for students or initial project concepts. However, for complex geometries, dynamic load cases, and code-compliant designs, professional software like SDC Verifier is indispensable. By understanding the capabilities and limits of each, engineers can optimize both efficiency and safety in their designs.
